MX-EC / MSX Hydraulic Square-Drive Wrench

Maximum control with minimal space requirements.
For automated screwdriving, precise evaluation, and absolute safety – with integrated protection for both people and machines.

Request a Quote
Technical Specifications

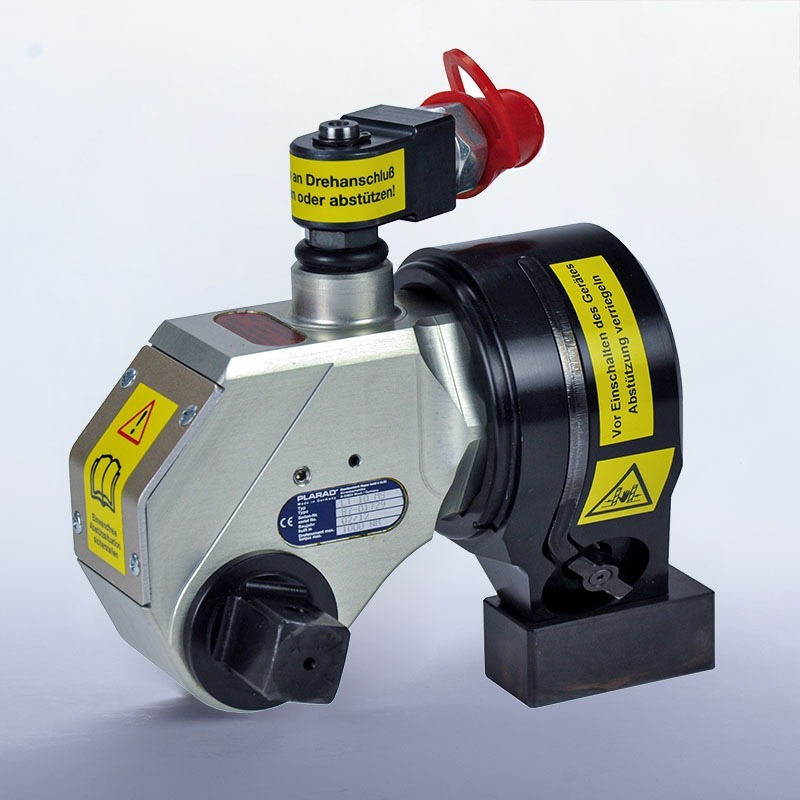

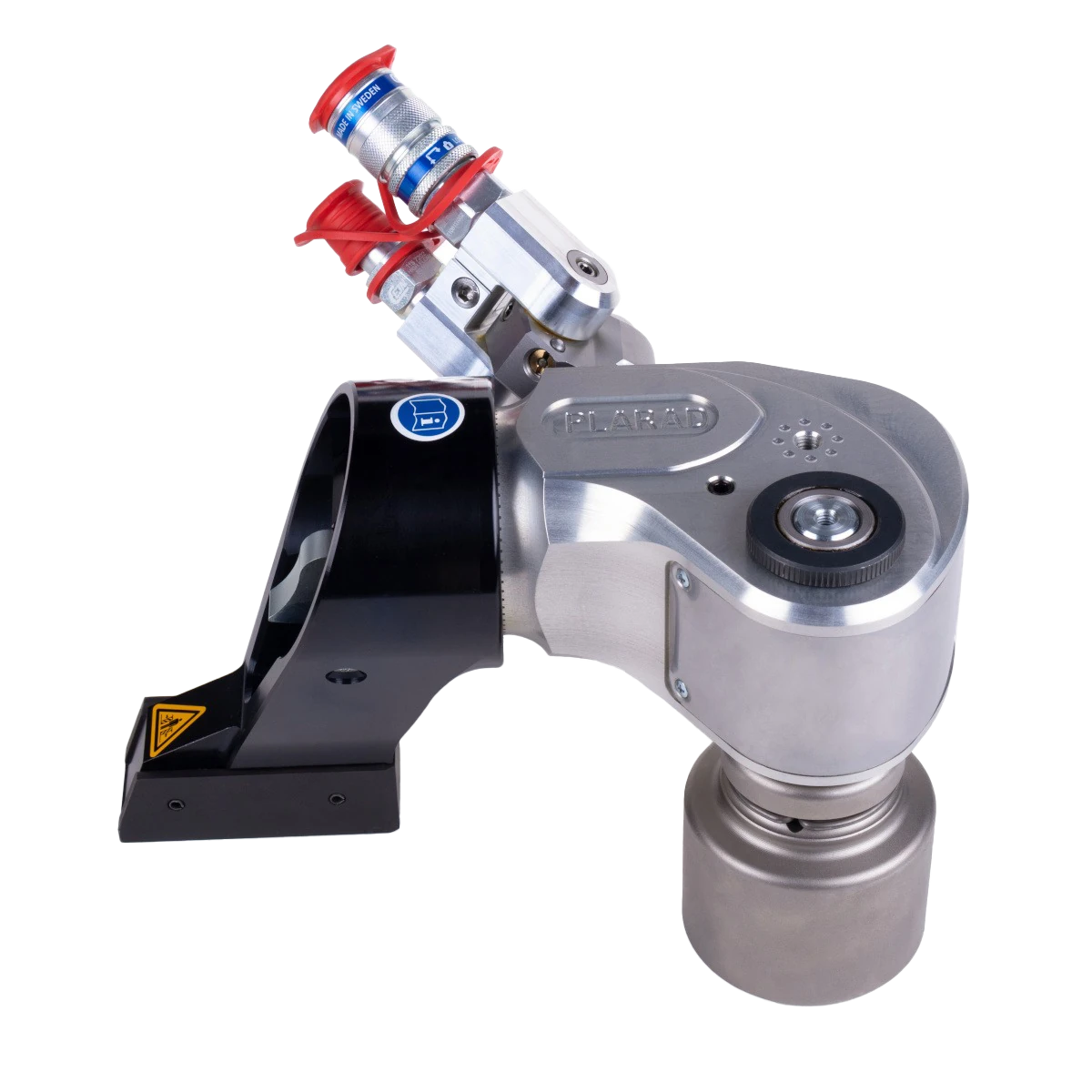

Pictured is a Plarad MX-EC hydraulic square-drive torque wrench.
Versatile insert and clip-on tools Extremely lightweight and slim design thanks to the use of high-performance aluminum Two joints that rotate 360° ensure maximum flexibility The fine-toothed support can be rotated 360°

The All-Around Hydraulic Torque Wrench

Fine-pitch ratchet system

Durable, fine-toothed ratchet system: The torque wrench does not jam once the exact torque is reached, regardless of the piston position

Automated Operation with Plarad Units

When used in combination with Plarad power packs, it is suitable for extremely fast and automatic operation, torque/angle mode, and documentation

Very compact design

Ideal for highly sensitive and hard-to-reach work areas thanks to its very compact design

Integrated shock absorber

Protection against damage to the housing provided by the built-in shock absorber

Standard Square Adapter with Quick-Change Mechanism

Standard square adapter with a quick-change mechanism for easily changing the direction of rotation and quickly swapping accessories

Patented locking mechanism (push & press)

A specially patented locking mechanism (push & press) prevents the adapter from coming loose accidentally and increases workplace safety for users

Replaceable Wear Parts

Sustainable and durable thanks to replaceable wear parts

Technical Features at a Glance

Performance and Speed

  • Torque range from 50 to 65,000 Nm with a system pressure of up to 800 bar
  • High screw-in speed thanks to optimal calibration for Plarad power packs

Handling and Occupational Safety

  • Comfortable and safe operation thanks to the 360° adjustable handle
  • Optional: Two-hand operation for optimal workplace safety

Connections and Configurations

  • Also available in an ATEX version
  • Also available as single-tube systems
  • 2-axis hose connection (rotatable and swiveling)

Certification

  • Optional with DAkks calibration certificate
Cross-section diagram of a mechanical device with gears, pistons, and an SQS certification badge in German, featuring a Plarad hydraulic square-drive torque wrench.

SQS Safety and Quality Service System

Designed for industrial use and built to last, Plarad hydraulic tools offer the reliability that is essential for absolute precision, high availability, and cost-effectiveness.

  • Special high-pressure safety chamber with an operating pressure of up to 800 bar
  • Maximum torque accuracy and no jamming thanks to a special drive system
  • Damping of the Solubility Shock
Request a Quote Now

Examples of Use

Technician with a Plarad XE1 hydraulic unit
A technician working on industrial piping with a Plarad hydraulic tool
A Plarad hydraulic tool and pump unit connected to a large industrial machine in a factory
A worker uses a hydraulic torque wrench from Plarad

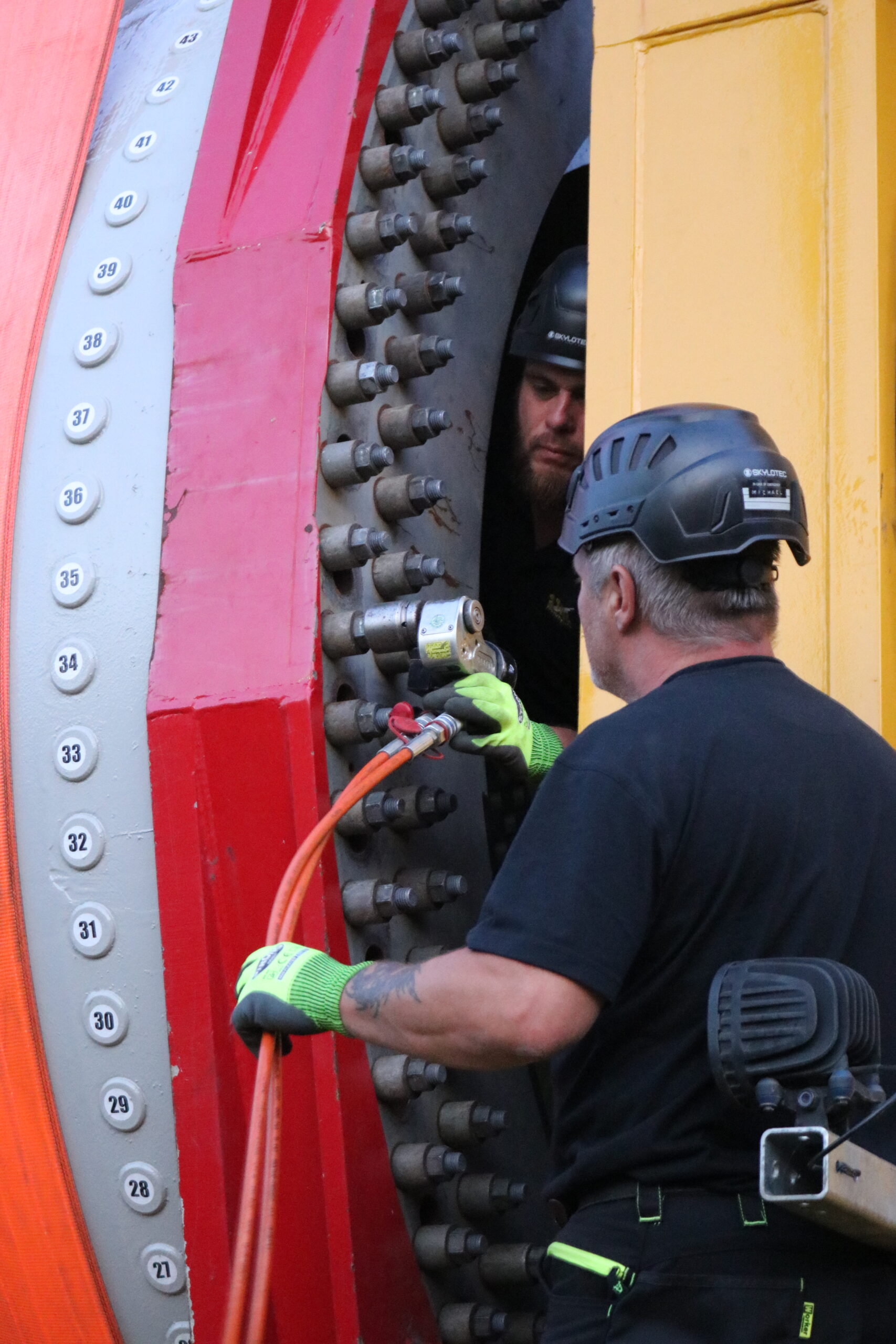

A worker, wearing the necessary safety gear, carefully tightens bolts on the hub of a wind turbine using a hydraulic square-drive wrench from Plarad.
Two workers wearing helmets and gloves inspect the large industrial machinery – the blade of a wind turbine – focusing on the numbered metal components. They use a hydraulic square-drive wrench from Plarad to ensure precision in their work.

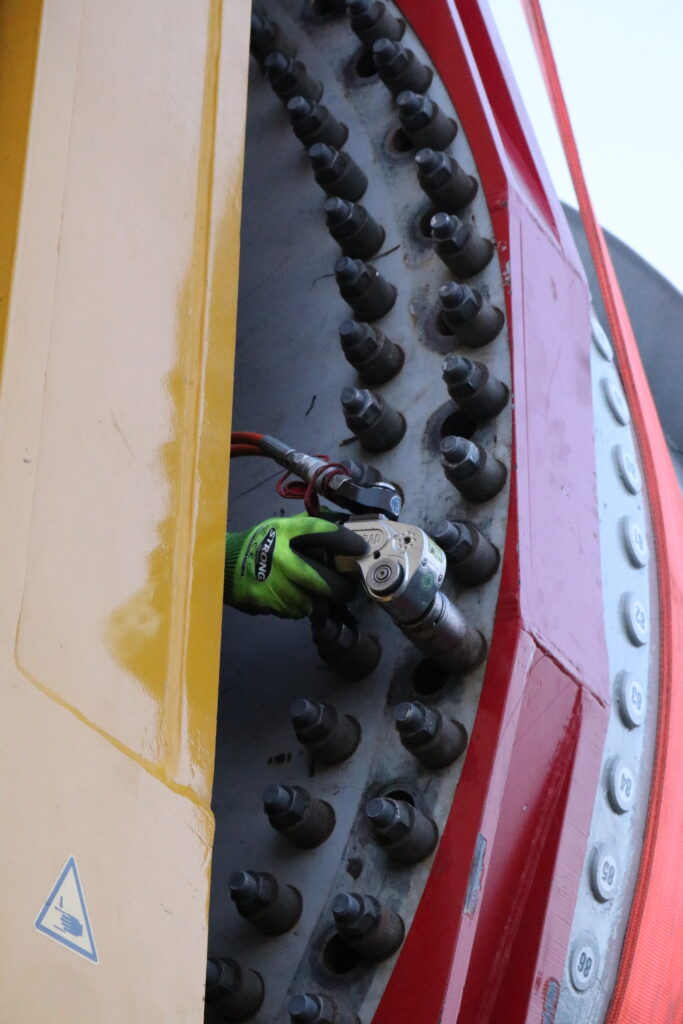

A person wearing green gloves uses a Plarad hydraulic square-drive wrench on large bolts in industrial machinery.
Worker with a Plarad hydraulic power pack
Industrial machinery with colorful pipes, cables, and metal platforms in a workshop setting.

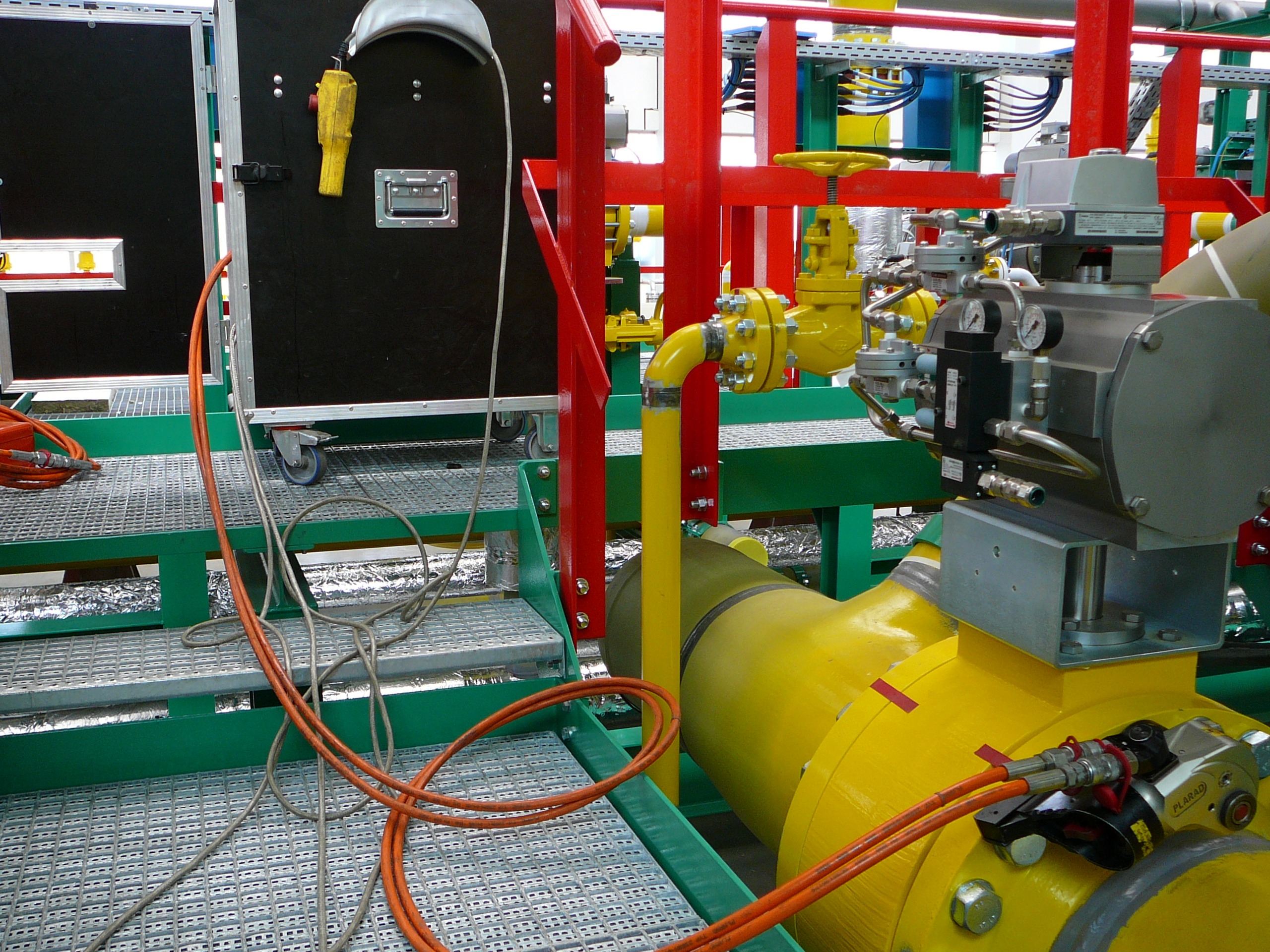

Hydraulic torque wrench attached to a large yellow pipe at an industrial facility.
Close-up of an industrial machine featuring a yellow component, large bolts, and a black-and-red lever, with the Plarad MXEC hydraulic torque wrench – one of the best-selling models – in operation.

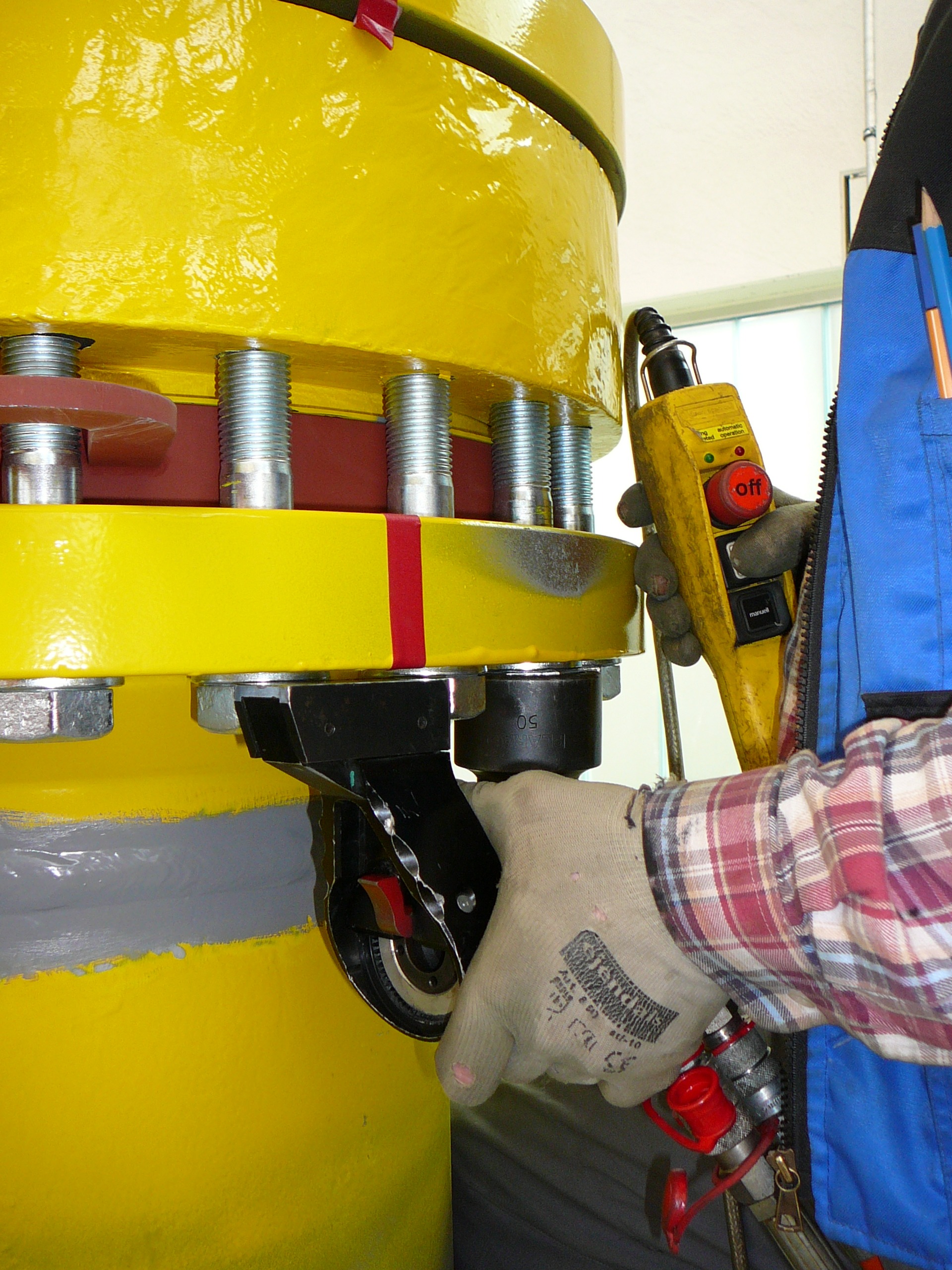

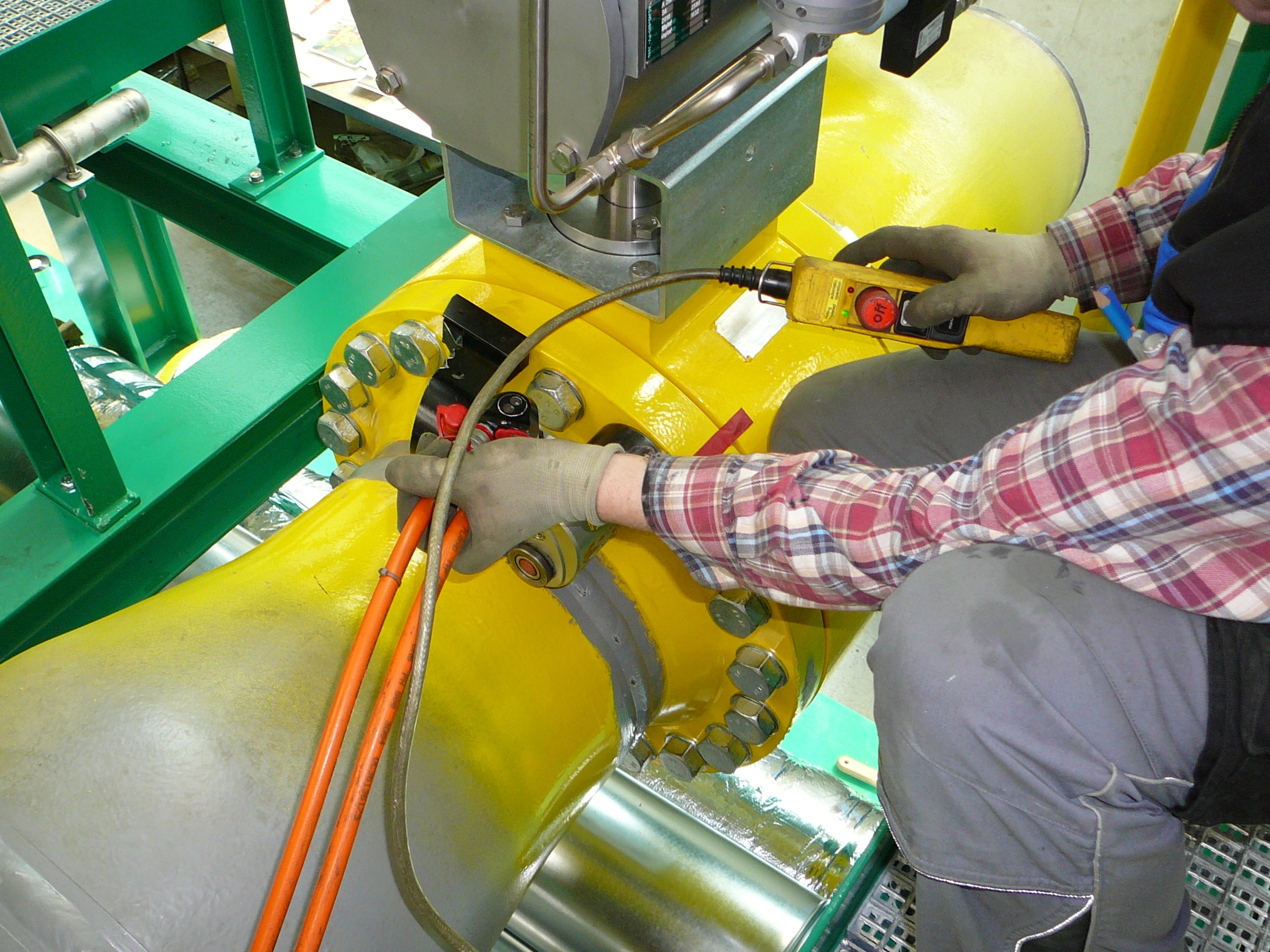

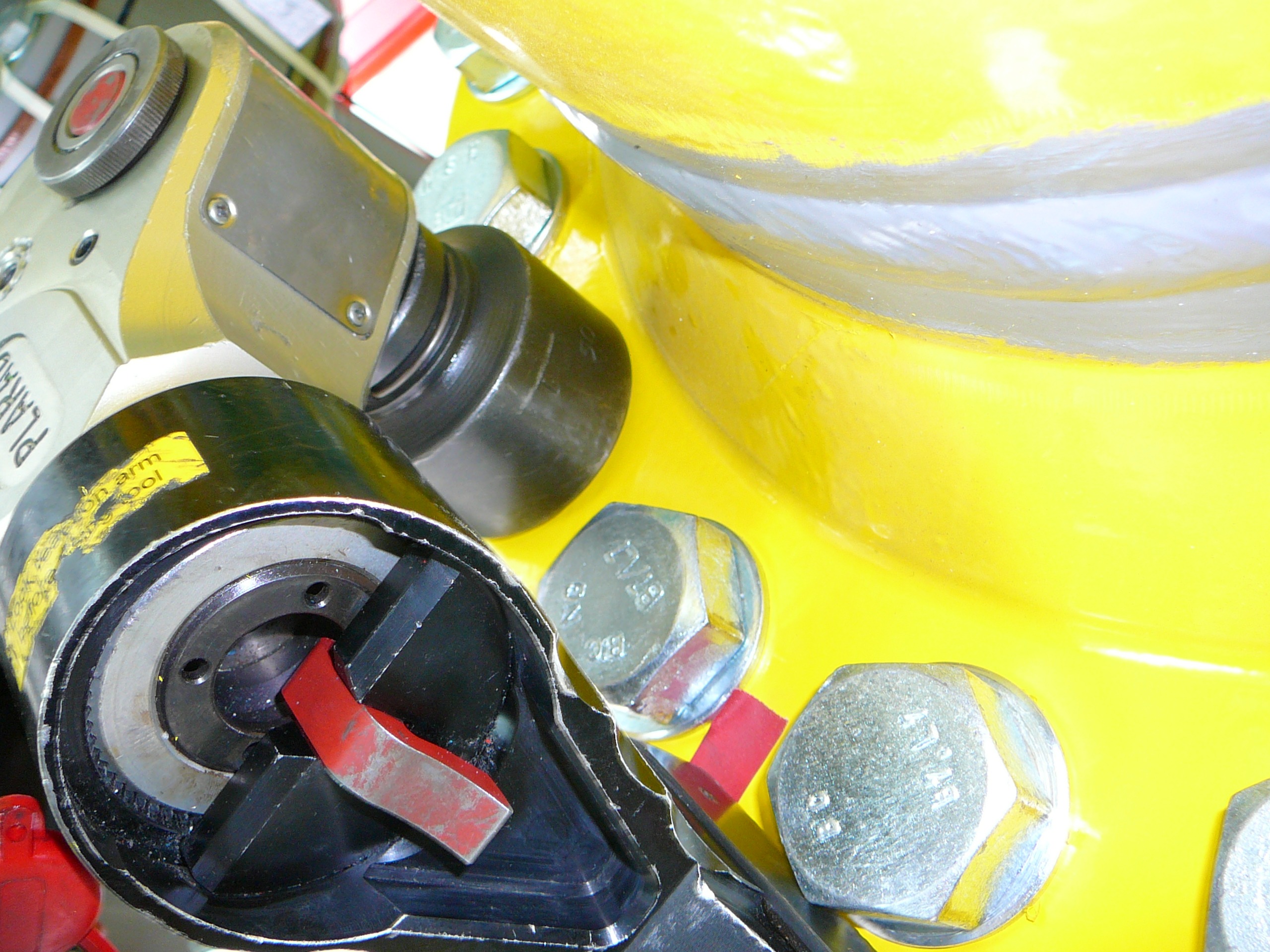

A person is using a handheld controller to operate a hydraulic torque wrench on a large yellow bolt.
A person using a control panel to adjust a machine with large yellow components and visible screws.
A person working on industrial machinery with tools and yellow pipes.
A worker wearing a hard hat operates machinery and expertly adjusts pipes and equipment on an industrial site using a Plarad hydraulic square-drive torque wrench.

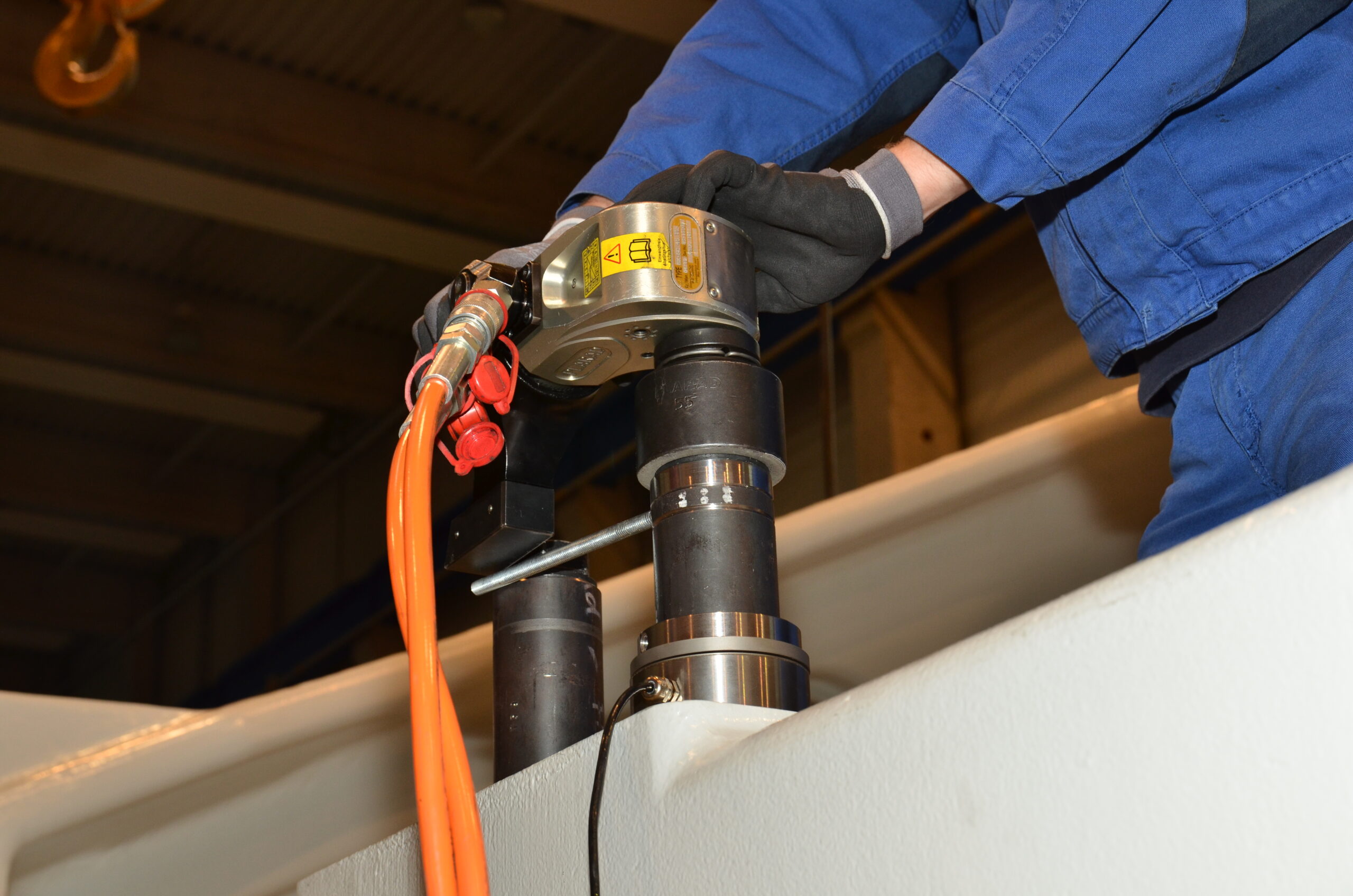

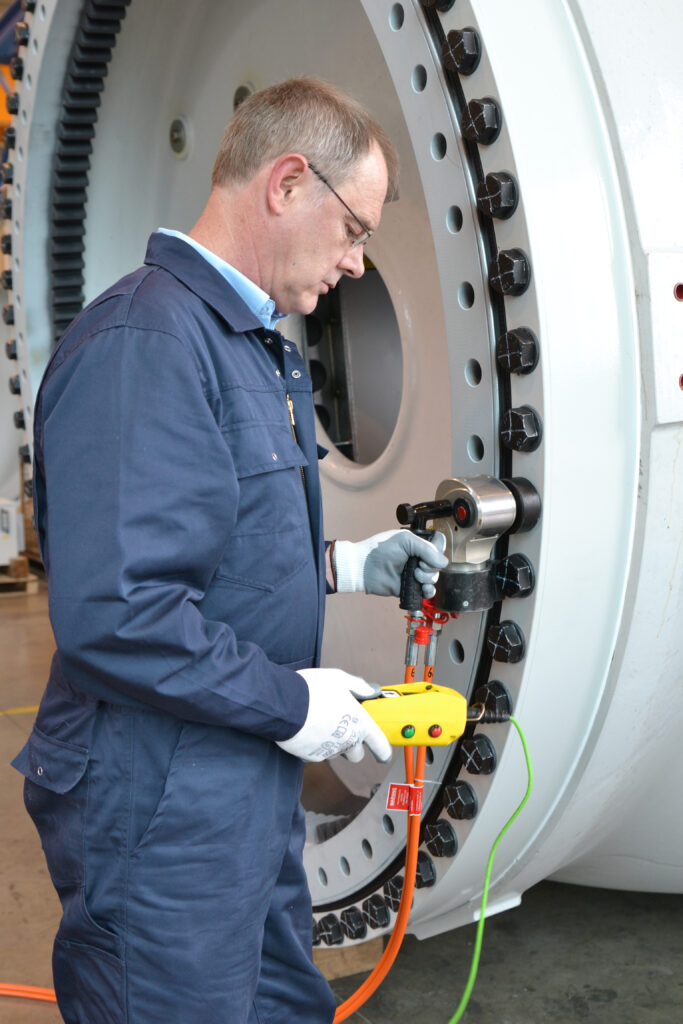

A man in blue overalls is using a Plarad hydraulic square-drive wrench on a large industrial bolt.
The Plarad hydraulic square drive wrench is an industrial machine component featuring a sleek cylindrical design in metal and black, expertly mounted on a sturdy internal structure.

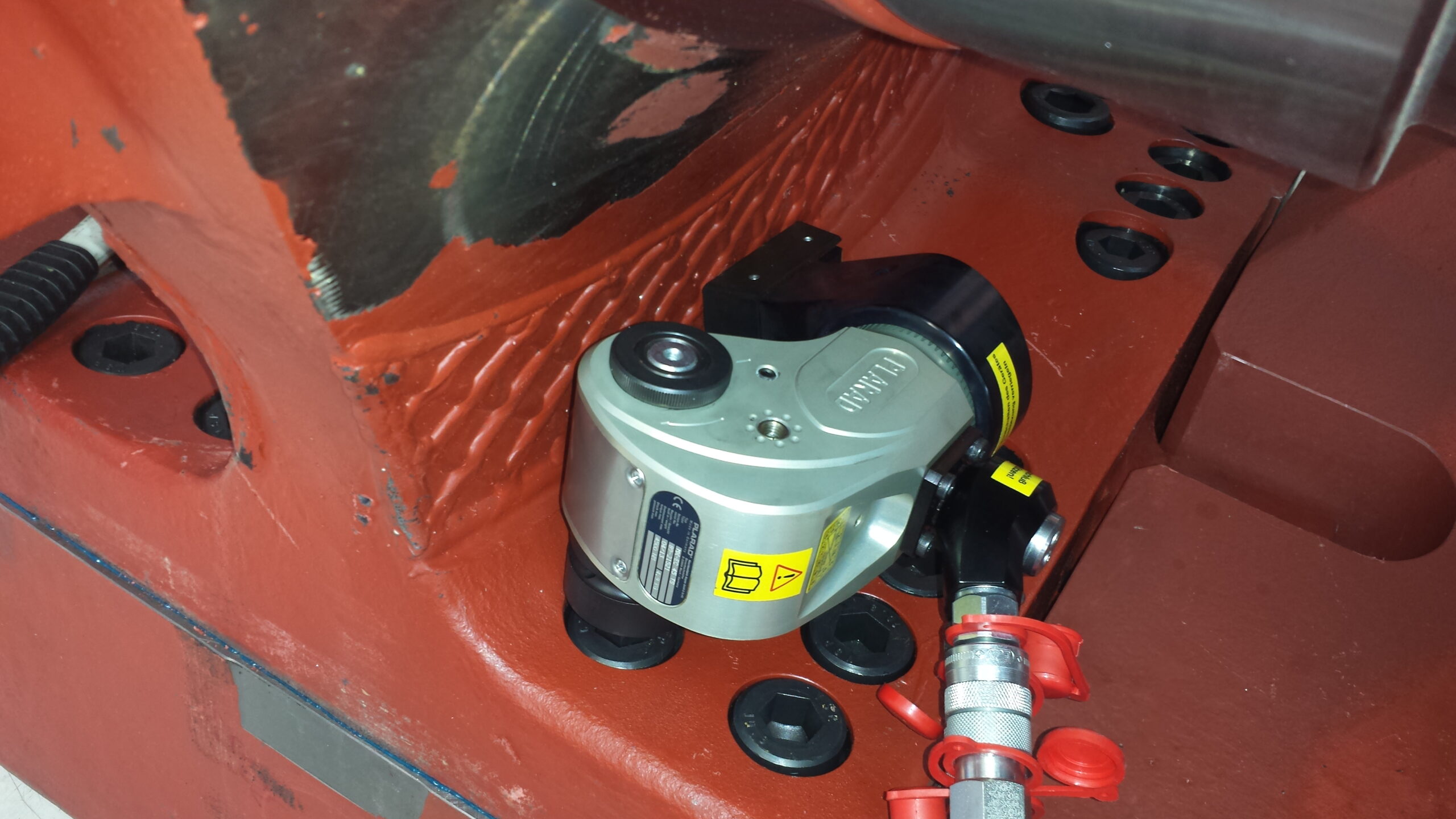

A hydraulic square-drive wrench from Plarad is expertly used on a metal structure, featuring visible bolt connections highlighted by a vibrant red coating.
The technician works carefully on large industrial machines, using a hydraulic square-drive wrench from Plarad to ensure the precision of the mechanical components.
A hydraulic square-drive wrench from Plarad is used to tighten large bolts on industrial machinery, ensuring precision and efficiency with every task.
In an industrial setting, the hydraulic square-drive wrench from Plarad works seamlessly with machines – equipped with an attached sensor and cable – and fits right into the busy factory routine.
A hydraulic square drive wrench from Plarad is a mechanical tool that is securely attached to bolts and various components on a large metal surface, ensuring reliability and precision.
A worker using a hydraulic torque wrench
Worker using a hydraulic torque wrench and a Plarad XE1 pump

Product Information

Accessories

  • Torque range from 50 to 65,000 Nm with a system pressure of up to 800 bar
  • High screw-in speed thanks to optimal calibration for Plarad power packs
  • Comfortable and safe operation thanks to the 360° adjustable handle
  • Also available in an ATEX version
  • Also available as single-tube systems
  • 2-axis hose connection (rotatable and swiveling)
  • Optional: Two-hand operation for optimal workplace safety
  • Optional with DAkks calibration certificate

You can find the right accessories for each product here.
