FSX Hydraulic Flange Wrench
Its compact design allows it to be used in confined and hard-to-reach areas
The lightweight solution for any flange connection
Changeover without modifying the tool
Easy switching from tightening to loosening mode without modifying the tool
Automated Operation with Plarad Units
When used with Plarad power packs, it is suitable for fast and automatic operation, torque/rotation angle mode, and documentation
Fine-pitch ratchet system
Durable, fine-toothed ratchet system: The torque wrench does not jam once the exact torque is reached, regardless of the piston position
An exceptionally lightweight design
Easy to use thanks to its exceptionally lightweight design
High tightening speed
High screw-in speed thanks to optimal calibration for Plarad power packs
Quick replacement of the drive unit
Quick and safe replacement of the drive unit from the cassette section with automatic disengagement of the piston and ratchet system
Slim design, lightweight
Flat, compact design for confined, highly sensitive, and hard-to-reach work areas. Lightweight thanks to its aluminum housing
Technical Features at a Glance
Installation and Protection
- Quick and easy installation/removal thanks to the patented connection between the piston and the ratchet system, even in the event of a release impact
- Protection against damage to the housing provided by the built-in shock absorber
Handling and Occupational Safety
- Comfortable and safe operation thanks to the 360° adjustable handle
- Optional: Two-hand operation for optimal workplace safety
Durability and Certification
- Sustainable and durable thanks to replaceable slide and bearing bushings
- Optional with DAkks calibration certificate
The new FSX1power with an optimized design
The redesigned housing of the hydraulic torque wrench features a particularly slim design, which allows for optimized use even where headroom is limited. In addition, the ratchet head has been designed to be ultra-compact and its radius has been further reduced, making the tool even better suited for work in tight and hard-to-reach areas.
The space-saving two-axis hose coupling, which comes standard, provides additional flexibility. It can be swiveled 180° and rotated 360°, which significantly simplifies handling while also contributing to a high level of operational reliability in daily use.

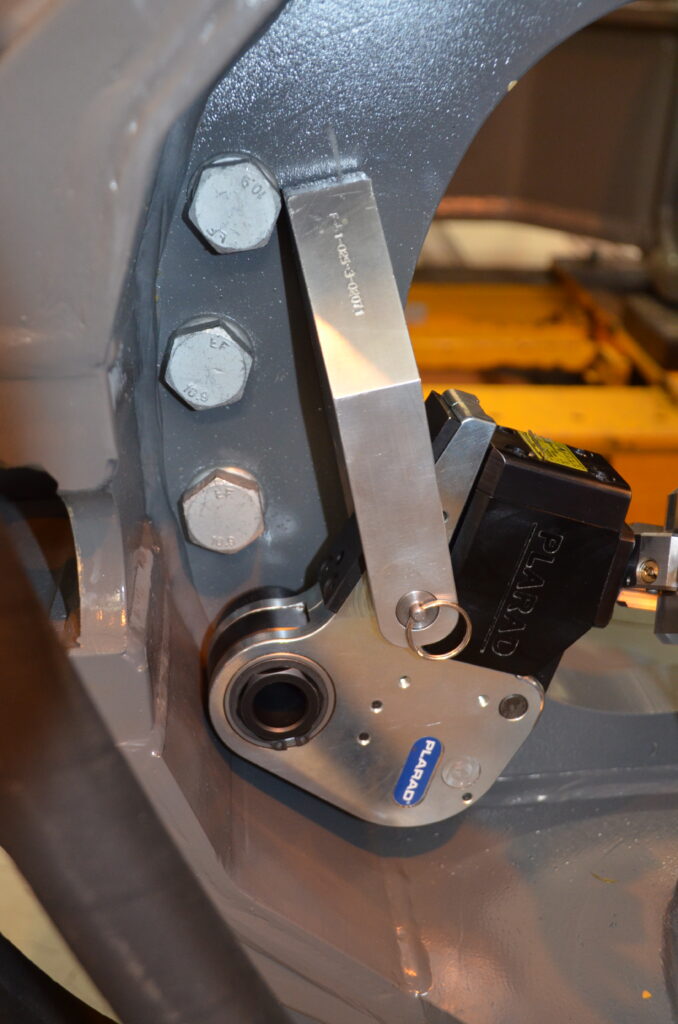

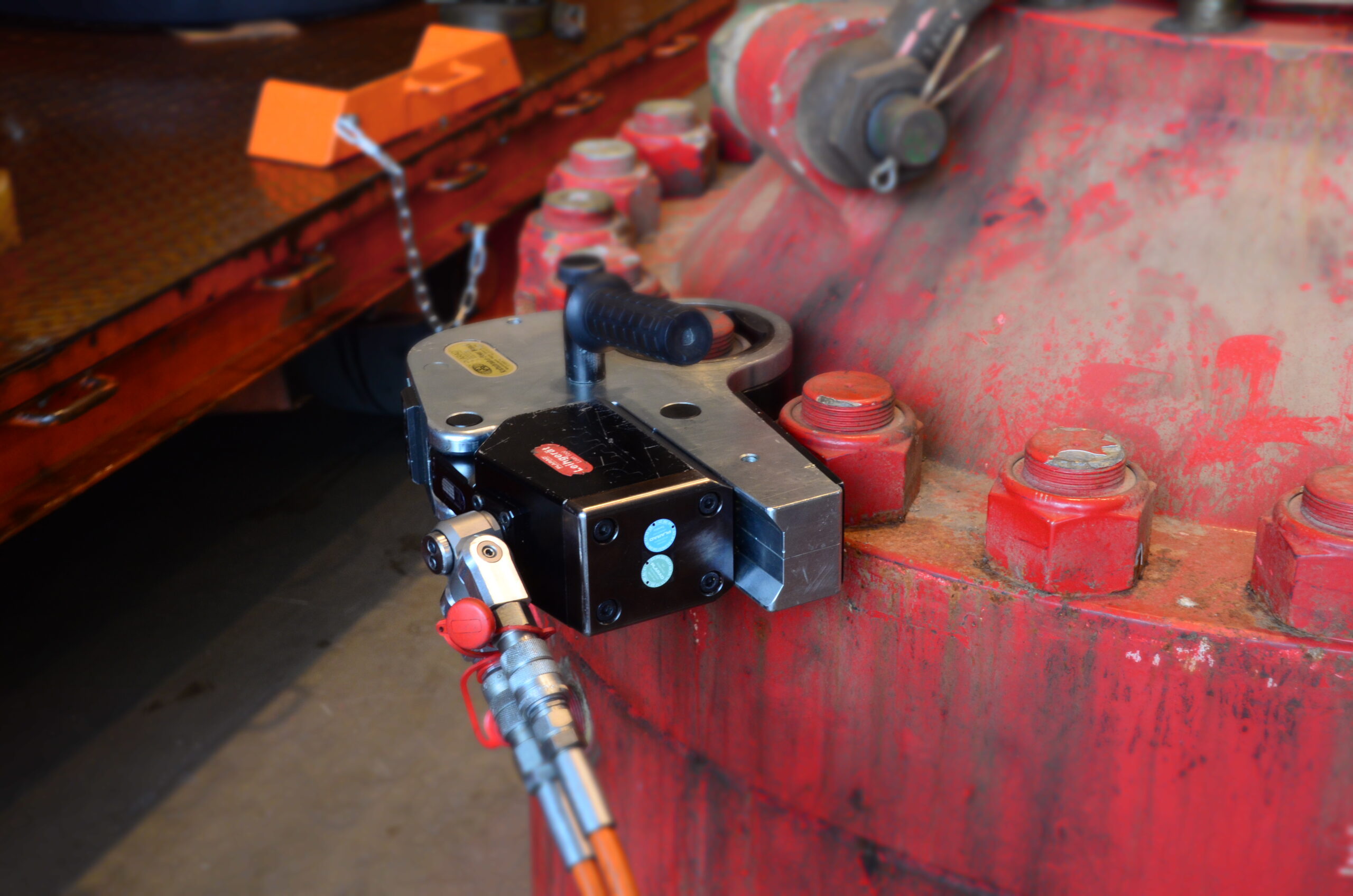

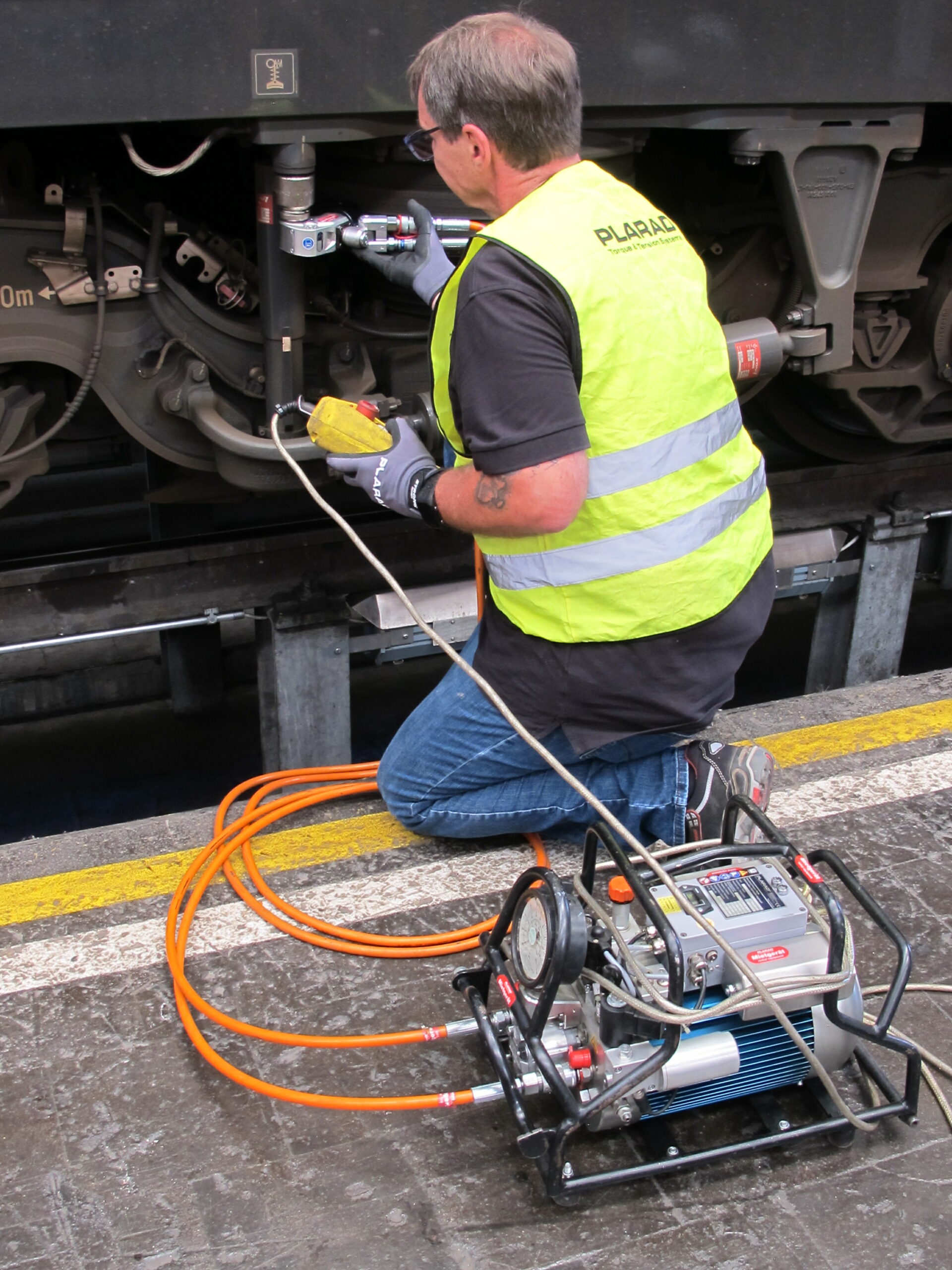

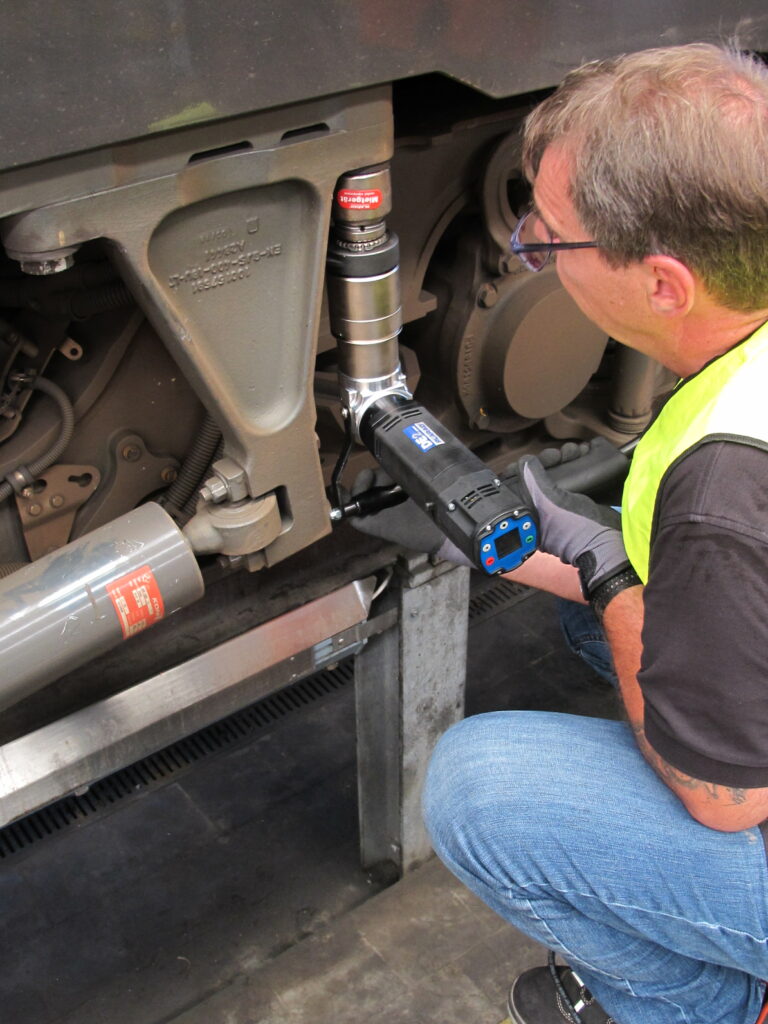

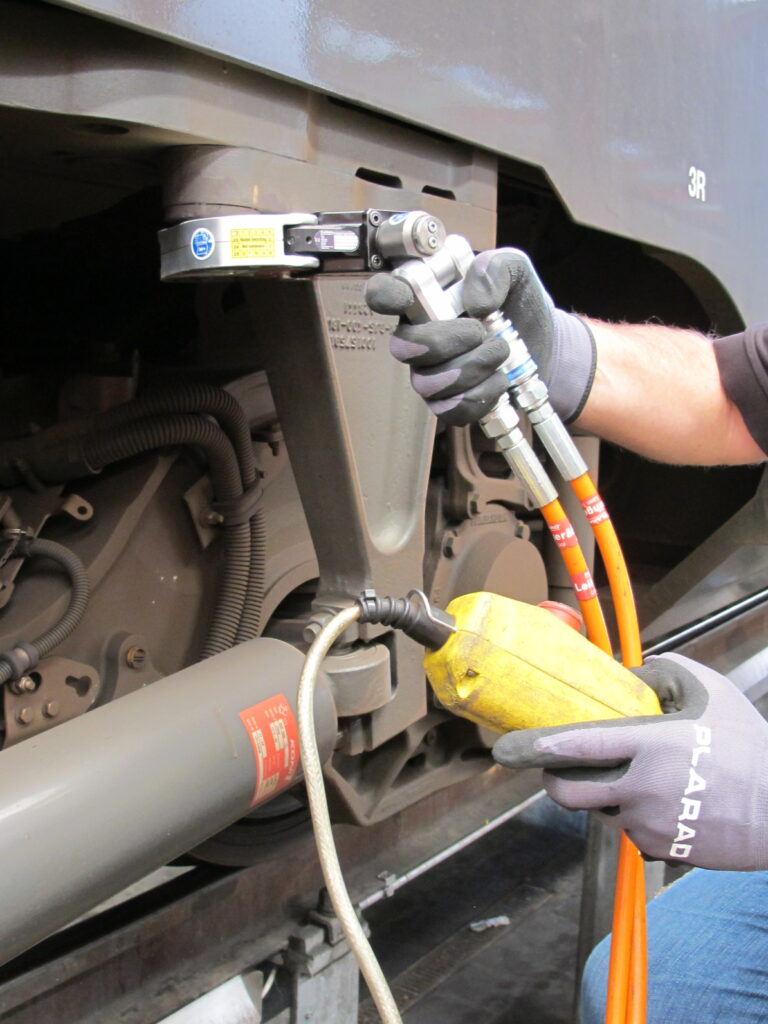

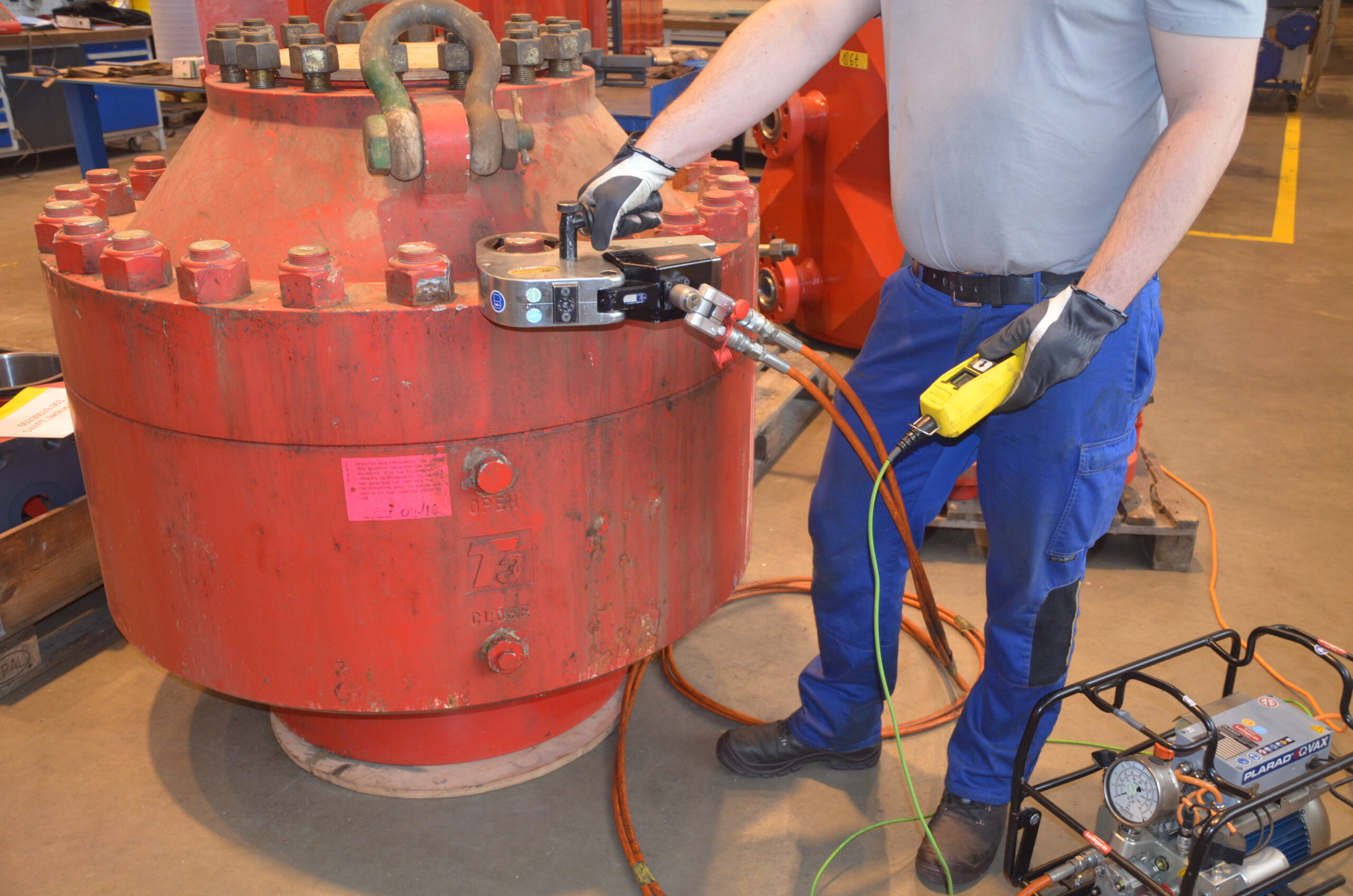

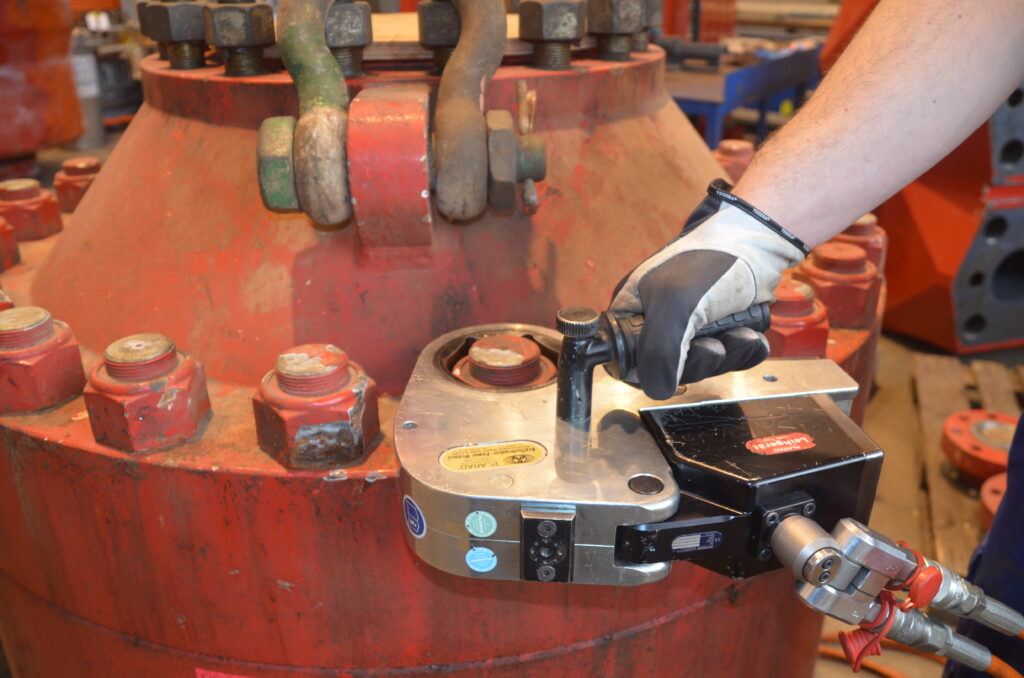

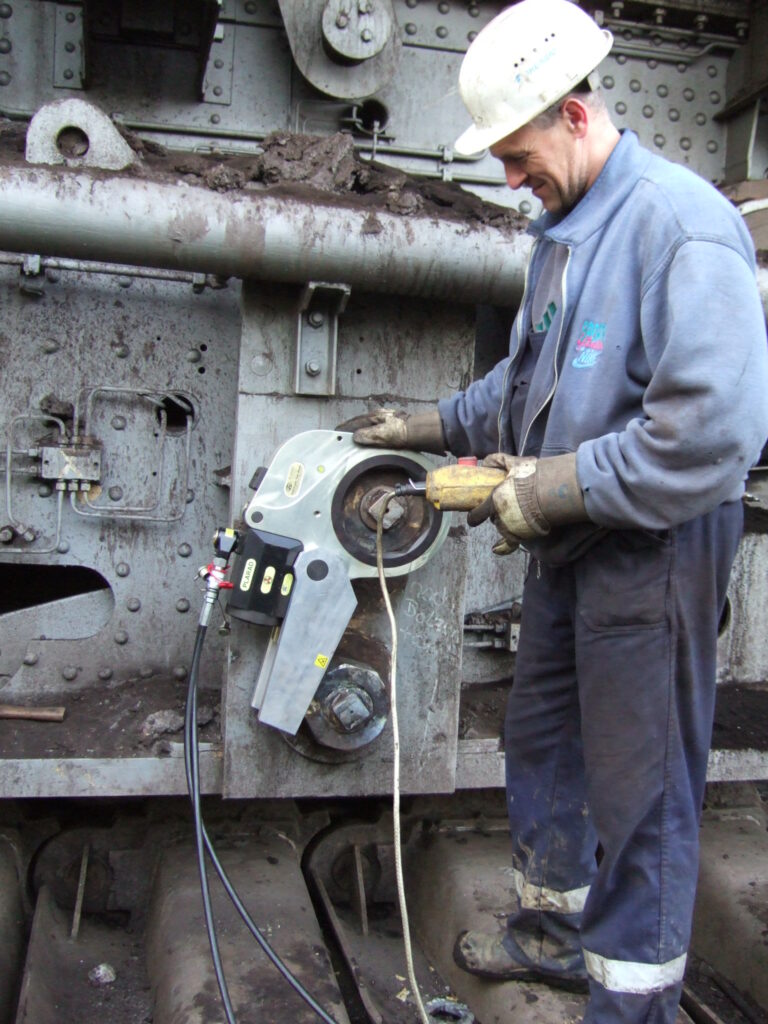

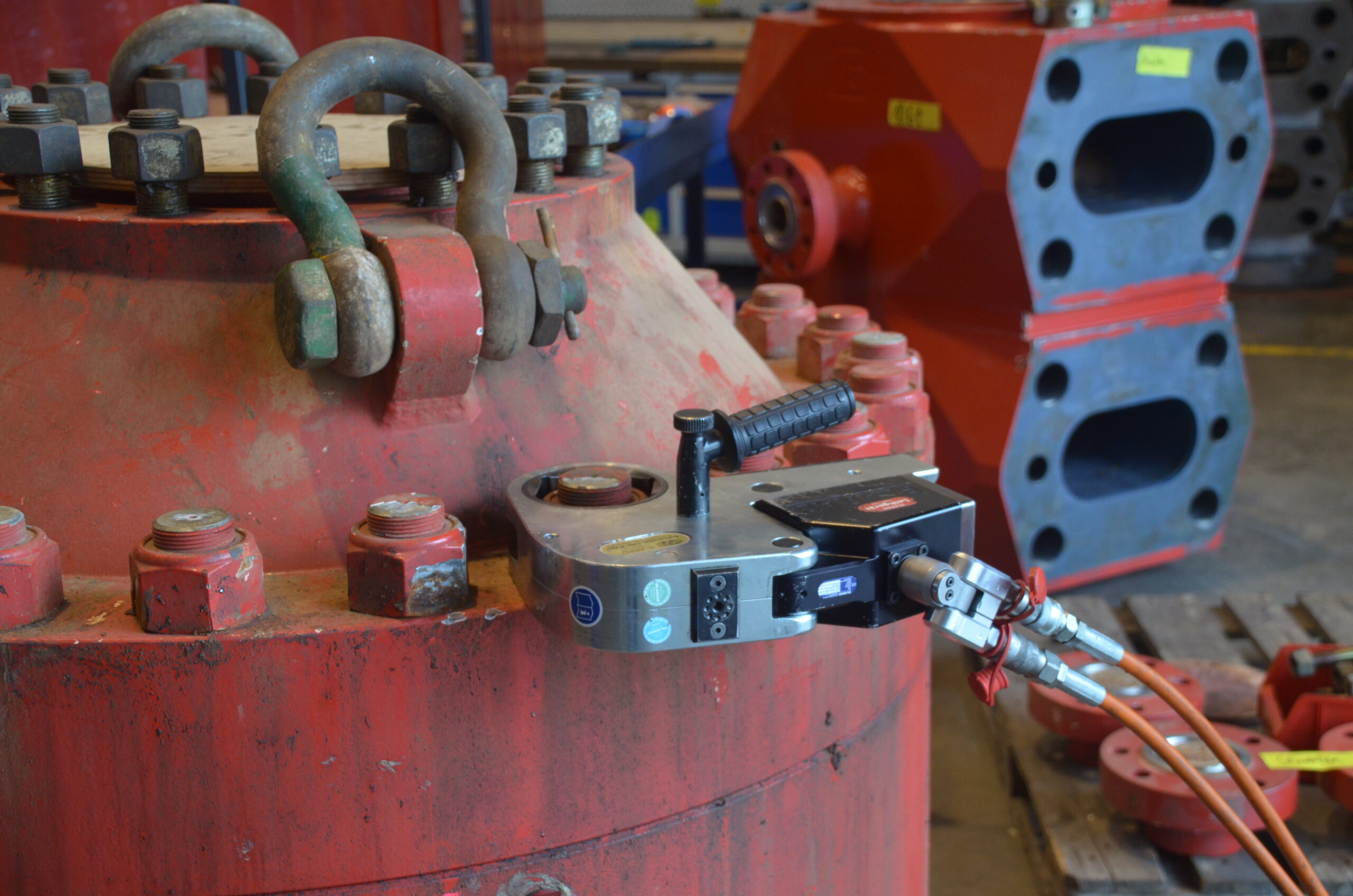

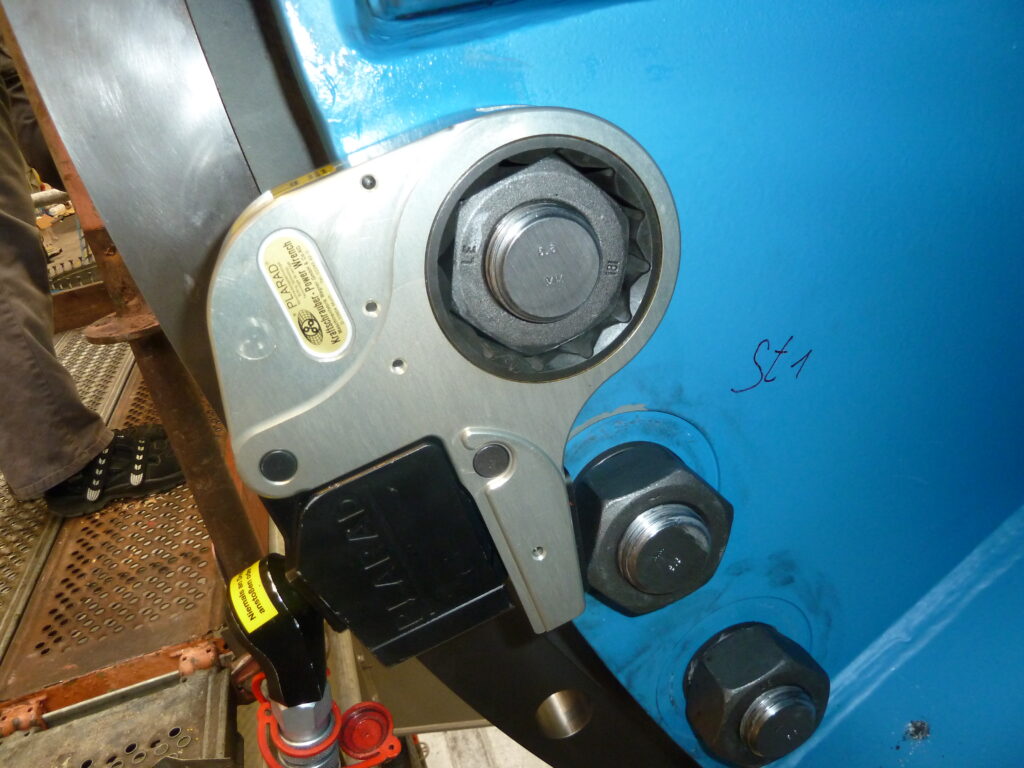

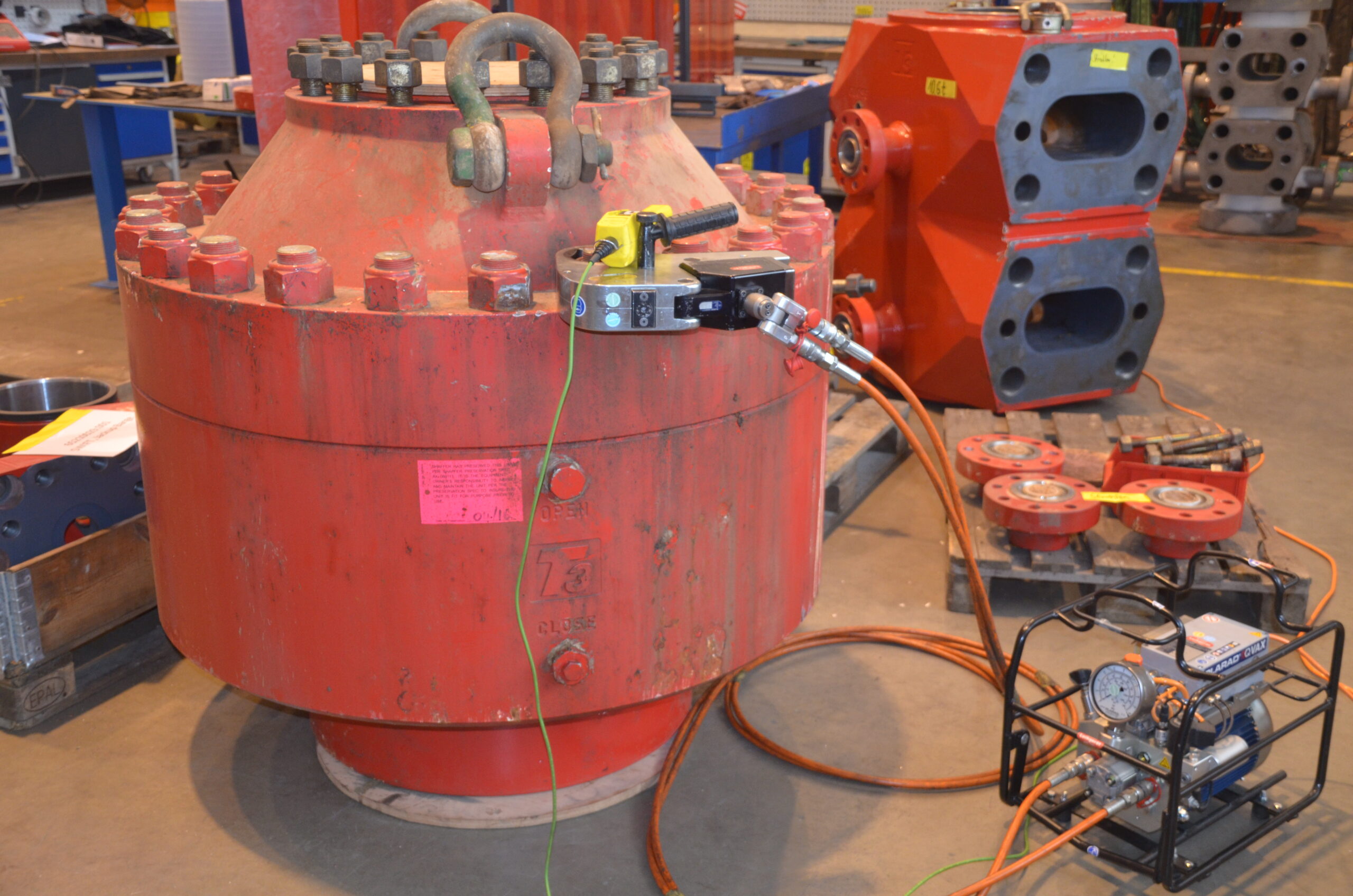

Examples of Use
Product Information
Accessories
Configure the Plarad cartridge torque wrench to meet your specific bolting requirements
FSX = Ratchet Head (HSX) + Drive Unit (SX/SX-EC)
- Quick and easy installation/removal thanks to the patented connection between the piston and the ratchet system, even in the event of a release impact
- Protection against damage to the housing provided by the built-in shock absorber
- Comfortable and safe operation thanks to the 360° adjustable handle
- Sustainable and durable thanks to replaceable slide and bearing bushings
- Optional: Two-hand operation for optimal workplace safety
- Optional with DAkks calibration certificate
